When you pull back that spring-loaded rod on the side of a pinball machine and let it snap forward, a steel ball rockets up the shooter lane and onto the playfield. That simple action is the mechanical heart of every pinball game. Understanding how the plunger launches the ball in pinball helps you play better, troubleshoot issues, and appreciate the engineering behind these classic machines.
Our team has spent years around coin-operated arcade games, and the plunger mechanism is one of the most asked-about topics we encounter. Whether you are a casual player trying to nail your first skill shot or a collector maintaining a vintage machine, knowing what happens inside that shooter lane changes how you approach every game.
In this guide, we walk through the plunger mechanism from the inside out. You will learn the physics of spring compression, the difference between manual and auto-launch systems, how to hit skill shots consistently, and how to keep your plunger in top shape.
Table of Contents
What Is a Pinball Plunger?
A pinball plunger is a spring-loaded rod mounted on the front-right corner of a pinball cabinet. It is the device that physically launches the ball from its resting position in the shooter lane up into the active playfield. Every traditional pinball machine has one, and it is the very first interaction a player has with the ball.

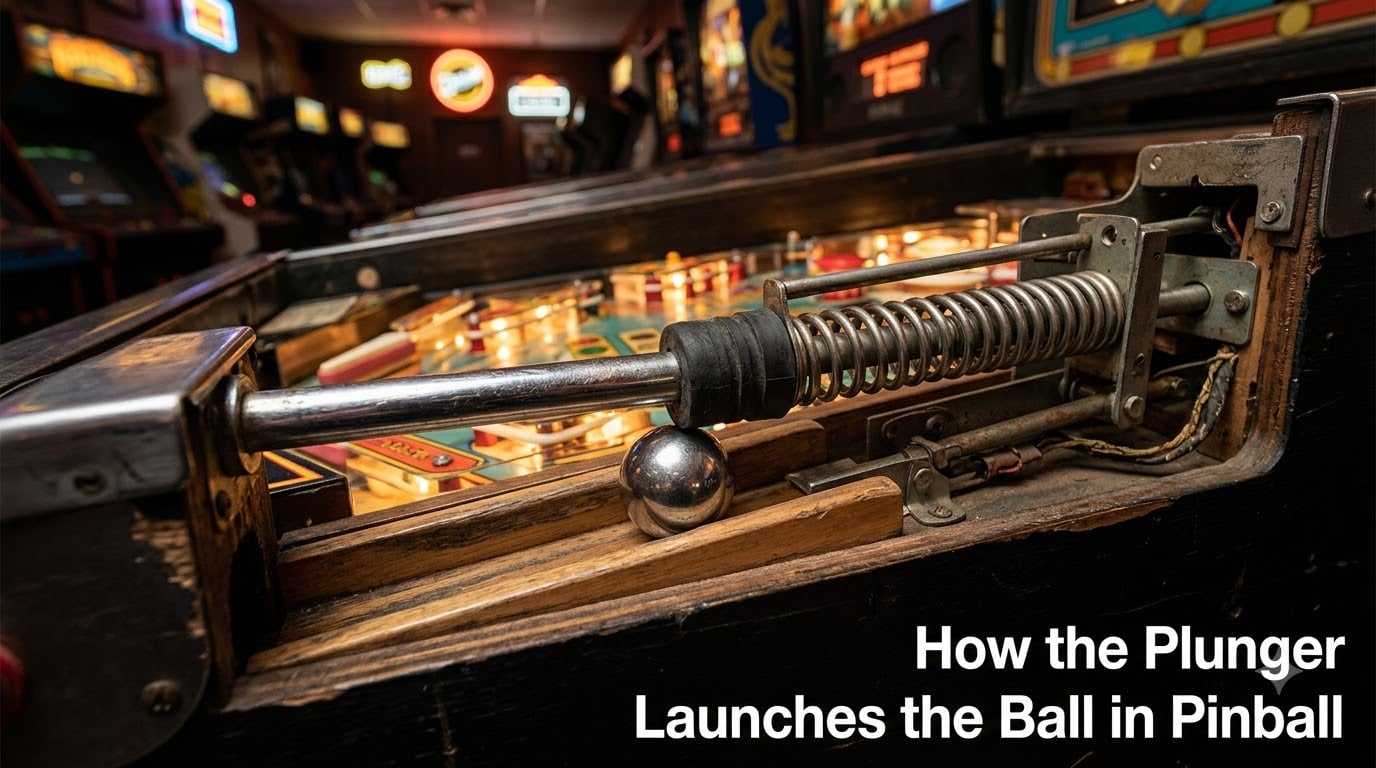

The plunger assembly consists of five main parts. The handle is the knob you grip on the outside of the cabinet. Connected to it is a metal rod that runs through the cabinet wall into the shooter lane. Inside, a coil spring wraps around the rod and provides the launching force. At the inner tip of the rod is a rubber or plastic tip that makes contact with the steel ball. The plunger sleeve is the tube or channel that guides the rod straight, keeping everything aligned.
When you pull the handle back, you are compressing that internal spring against a fixed point inside the assembly. The further you pull, the more energy you store. Release the handle, and that stored energy converts directly into forward motion, driving the tip into the ball.
How the Plunger Launches the Ball in Pinball: Step by Step
The launch sequence is a straightforward mechanical chain, but each step matters for how the ball enters the playfield. Here is exactly what happens from the moment you grab the plunger to the moment the ball is in play.
Step 1: The ball rests in the shooter lane. After you start a game (or after a ball drains), the machine feeds a fresh steel ball into the shooter lane through a trough system. The shooter lane is a narrow channel on the right side of the playfield, angled upward. The ball settles at the bottom of this lane, directly in front of the plunger tip.
Step 2: You pull the plunger handle back. Grabbing the handle and pulling it toward you draws the rod backward through the sleeve. This backward motion compresses the coil spring. The more you pull, the tighter the spring gets, and the more mechanical energy you store in the system.
Step 3: The spring locks into compressed position. As long as you hold the plunger back, the spring stays compressed and the energy stays stored. You control exactly how much force the launch will have by how far you pull. Most shooter lanes have lane markings or a gauge visible through a window that helps you read your plunge strength.
Step 4: You release the plunger. Letting go of the handle removes the restraining force. The compressed spring expands rapidly, pushing the rod and tip forward.
Step 5: The tip strikes the ball. The plunger tip hits the steel ball squarely, transferring all that stored spring energy into the ball. Because the shooter lane is angled upward, the ball accelerates up the lane.
Step 6: The ball enters the playfield. The ball travels the length of the shooter lane and exits at the top, rolling onto the main playfield where flippers, bumpers, and targets take over. From there, the game is in your hands.
This entire sequence takes less than a second. The speed of the ball depends entirely on how much you compressed the spring with your pull.
The Physics Behind Spring Compression and Release
The plunger is a textbook demonstration of stored mechanical energy. When you compress a spring, you are doing physical work on it, and that work gets stored as potential energy. Release the spring, and that potential energy converts instantly into kinetic energy, the energy of motion.
The relationship between how far you pull and how hard the spring pushes follows a basic principle: the more you compress it, the more force it generates. Double your pull distance, and you roughly double the launching force. This is why a gentle pull sends the ball halfway up the shooter lane, while a full pull rockets it onto the playfield with speed to spare.
Players use this principle to control ball speed. A full-strength plunge sends the ball screaming around the top of the playfield. A controlled, partial plunge can place the ball in a specific lane for a skill shot. The shooter lane markings that experienced players reference are essentially a visual gauge of spring compression, letting you reproduce a specific launch force on demand.
One important note from the pinball community: slamming the plunger with excessive force does not help. Players on forums like r/pinball and Pinside consistently warn that slam plunging damages the machine, can dent the ball, and wears out the plunger tip and sleeve faster. Controlled, deliberate pulls are both more effective and better for the machine.
Types of Plunger Systems: Manual vs Auto-Launch
Not every pinball machine uses the traditional spring plunger. Over the decades, manufacturers have developed different ball launch systems, and modern machines offer a mix of approaches.
The Traditional Manual Plunger
The classic spring-loaded plunger is what most people picture. It is a purely mechanical device with no electronics involved in the launch itself. The player physically pulls the spring, controls the force, and feels the tactile feedback of the release. This is the system used on virtually all machines from the 1940s through the 1980s, and it remains common on modern machines too.
Manual plungers give players the most control over launch power. This is critical for skill shots, where landing the ball in a specific zone requires precise force. The downside is that the plunger takes up physical space on the cabinet and requires maintenance, as springs wear out and sleeves degrade over time.
The Electronic Button Launch
Many modern pinball machines replace or supplement the manual plunger with an electronic launch button. Instead of pulling a spring, you press a button on the cabinet. That button activates a solenoid, an electromagnetic coil that fires a metal plunger rod forward to strike the ball.
The solenoid launch is consistent and reliable. Every press delivers roughly the same force, which eliminates the skill variable of manual plunging. For machines designed around auto-launch, this works well because the game software controls when and how hard to launch the ball. When a ball drains, the machine can auto-plunge the next ball without player input.
Which System Is Better?
Purists tend to prefer manual plungers because the physical skill of controlling launch power adds depth to the game. Skill shots are more meaningful when you have to earn them with a precise pull. Electronic launch buttons are more accessible for new players and require less maintenance, but they remove that skill element.
Some machines offer both. A traditional plunger is installed for manual play, and a solenoid handles auto-launch situations, like when the game needs to send a ball into play automatically after a multiball event.
Skill Shots: Why Your Plunge Matters
A skill shot is a bonus you earn by launching the ball with a specific, controlled amount of force so that it lands in a designated scoring zone at the top of the shooter lane. Most machines feature some form of skill shot, and hitting one consistently is a hallmark of an experienced player.
The shooter lane on many machines has visible markings, numbers, or colored zones that correspond to how far the ball travels with a given plunge strength. These markings are your gauge. If a skill shot requires the ball to land in the second lane from the left at the top of the shooter lane exit, you learn exactly how far to pull the plunger to achieve that specific force.
Here is the approach our team recommends for developing a consistent skill shot. First, study the shooter lane markings on the specific machine you are playing. Pull the plunger to a specific position, like halfway or three-quarters, rather than going by feel alone. Release smoothly without any wrist snap, since a jerky release introduces inconsistency. Note where the ball goes, then adjust your pull distance up or down slightly on the next ball.
With practice, you develop muscle memory for each machine. Different machines have different spring tensions, shooter lane lengths, and skill shot requirements, so what works on one game will not necessarily transfer to another. The players who consistently nail skill shots are the ones who take the time to learn each machine’s plunger feel.
Some machines feature multiple skill shots at different plunge strengths, meaning a gentle plunge scores one bonus while a hard plunge scores another. This adds strategic depth, since you choose which skill shot to aim for based on game state.
Plunger Maintenance and Troubleshooting
Like any mechanical component, the plunger assembly needs regular upkeep. Worn parts lead to inconsistent launches, weak shots, and frustration at the machine. Here is what to watch for and how to address common issues.
Worn Plunger Springs
The coil spring is the workhorse of the plunger assembly, and it wears out over thousands of launches. A worn spring loses tension, which can actually result in more power on a full plunge as the spring bottoms out and metal hits metal. More commonly, a worn spring produces inconsistent force, making skill shots nearly impossible to hit reliably.
Replacing a plunger spring is one of the simplest maintenance tasks on a pinball machine. Springs are inexpensive, and swapping one takes about ten minutes with basic tools. If your launches feel weak or inconsistent, the spring is the first part to check.
Plunger Sleeve Wear
The plunger sleeve guides the rod as it slides back and forth. Over time, the inside of the sleeve wears down, creating looseness and side-to-side play in the rod. This causes the plunger tip to strike the ball at a slightly different point each time, leading to unpredictable launch angles and speeds.
Community collectors on forums like Pinside note that sleeve wear is a common culprit behind mystery launch problems. If your spring is good but launches are still inconsistent, inspect the sleeve for wear and replace it if the rod has noticeable wiggle.
Cleaning and Lubrication
Dirt and grime build up inside the plunger assembly over years of play. Cleaning the rod and sleeve with a dry cloth removes debris that causes friction and inconsistent movement. A tiny amount of pinball-safe lubricant on the rod can smooth out the action, but use it sparingly, as excess lubricant attracts more dirt.
Avoid lubricating the spring itself or the ball contact area. The plunger tip should make clean, dry contact with the steel ball for consistent energy transfer.
Adjusting Plunger Tension
Some machines allow you to adjust the plunger tension by changing the spring or repositioning the spring anchor point. A stiffer spring requires more force to pull but delivers a harder launch. A softer spring makes gentle, controlled plunges easier but may not generate enough force for a full-strength launch on some machines.
If you are adjusting tension for skill shots specifically, experiment with a slightly softer spring. This gives you a wider range of controlled plunge strengths, making it easier to find the sweet spot for a particular skill shot lane.
FAQs
How do ball plungers work?
A ball plunger works by compressing a coil spring when you pull the handle back. Releasing the handle lets the spring expand rapidly, driving the plunger rod and tip forward to strike the ball and send it up the shooter lane onto the playfield.
How do pinball launchers work?
Pinball launchers use either a manual spring-loaded plunger or an electronic solenoid. The manual plunger stores energy in a compressed spring that releases on demand. An electronic launcher uses an electromagnetic coil that fires a rod forward when a button is pressed, providing consistent launch force controlled by the machine software.
What is a Lazarus in pinball?
A Lazarus in pinball refers to a ball that comes back into play after appearing to have drained. Some modern machines feature a Lazarus mechanism or software rule that detects a ball that bounces back up from the drain area and returns it to play, giving the player a second chance.
How do I adjust pinball plunger tension?
You can adjust plunger tension by replacing the coil spring with a stiffer or softer one, or by repositioning the spring anchor point if your machine allows it. A softer spring gives more control for skill shots, while a stiffer spring provides harder full-strength launches.
Conclusion
Knowing how the plunger launches the ball in pinball gives you an edge every time you step up to a machine. The mechanism is elegantly simple: you compress a spring, release it, and the stored energy drives the ball into play. But mastering the nuance, how hard to pull, when to go for a skill shot, and how to maintain the assembly, is what separates casual players from skilled ones.
Whether your machine has a classic manual plunger or a modern electronic launch button, the principle is the same. Stored energy becomes motion, and that motion puts the ball in your hands. Next time you play, pay attention to your plunge. Read the shooter lane markings, aim for a skill shot, and feel the difference a controlled launch makes.
